Version 1.0           Last Updated 28 May 2022                 Approx 0.9 MB (zipped)


The attached database shows several ways of quickly adding records to a junction table.

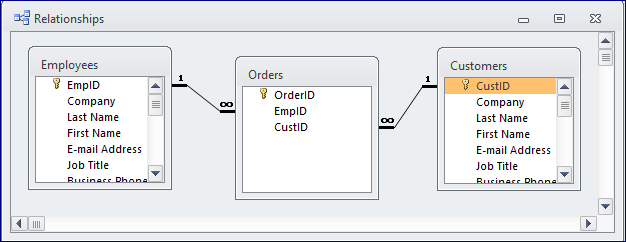

This is done to create a one to many to one relationship such as that below.


This approach is often needed when a design change leads to a junction table being added after records have already been entered in the two main tables.

For convenience in this example, 6 employees and 5 customers have been taken from the Northwind database.

As a result, the Orders junction table could in principle include up to 6x5=30 possible records
In real life, it is likely that not all the possible junction records would be needed

This is intended as a 'proof of concept' only and the methods should be adapted for your own purposes.

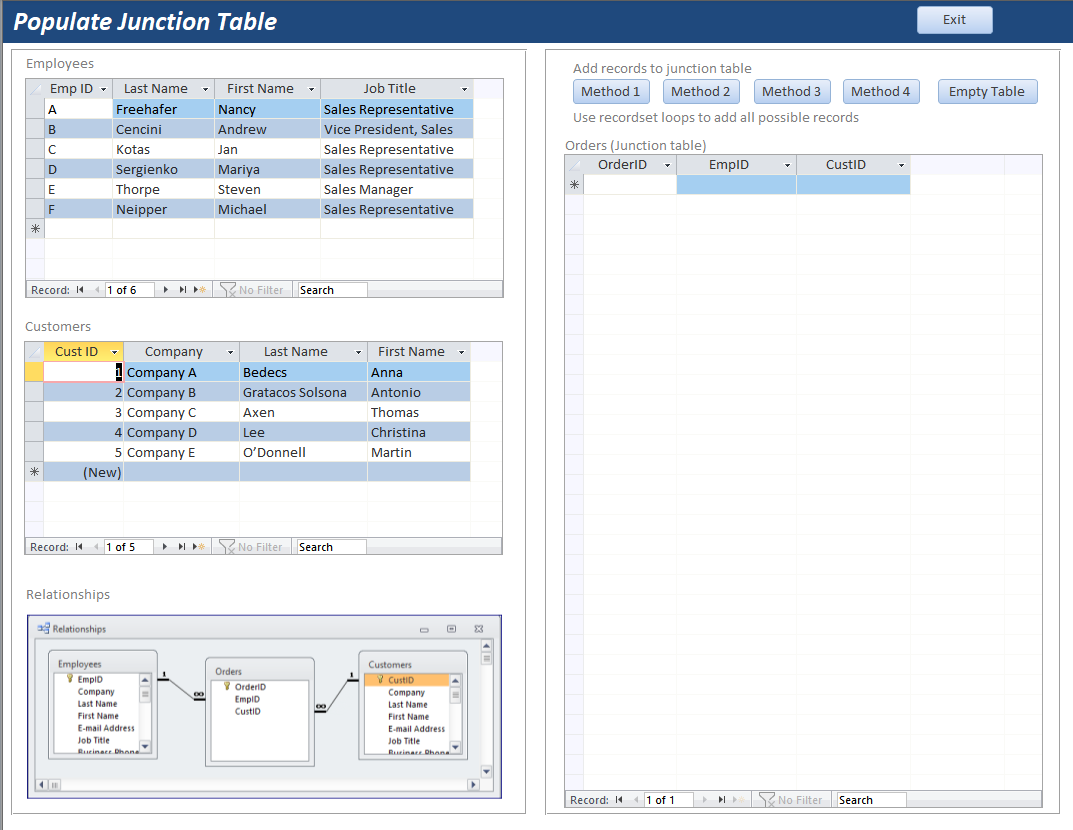

The example app includes 4 different methods using cartesian joins and looping through recordsets to append all/some records.



Method 1
Cartesian join query used to append all 30 records

Method 2
As method 1 but with 10 selected records EXCLUDED

Method 3
Uses recordset loops to append all 30 records

Method 4
Uses recordset loops to append all 30 records then removes 5 selected records


NOTE:
If there are many records to be added, the cartesian join will be much faster than looping through recordsets to add one record at a time i.e. row by agonising row (RBAR)

The code used for each method is available in the example app. I hope these ideas are useful to others



Download

Click to download:      Populate Junction Table     0.9 MB (zipped)
